9000 Ibs 2 Post Single Lock Release elevator with CE/ISO

FOB Reference Price:Get Latest Price
US $900-1,500 / Sets | 1 Set/Sets (Min. Order)
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Design:
Two Post
Type:
Chain drive Design
Certification:
CE
Lifting Capacity:
4000kg
Lifting Height(mm):
3800mm
Place of Origin:
Shandong, China (Mainland)
Brand Name:
J&F
Model Number:
L-2C-40C
Warranty:
5 Years
Color:
as requested
Rise time:
50s
Voltage:
110/220v/380v
Arms:
Symmetrical or Asymmetrical
Standard Working Pressure:
16Mpa
Power Unit Motor:
Standard Black Motor
Width between Pillars:
2800mm
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
A Steel Frame: 3850*550*800mm
770Kg
21units/20'
Port
Tian jin
Lead Time :
30 days after receiving payment

8 Folds post design Double Hydraulic Cylinder Drive two post Car Lifter  :



Description:



Floor plate 2-post lift, Double Cylinder Drive Design
Single Lock Release System
Lifting Capacity             4.5T
Rise Height                   1922mm
Height Overall                2825mm
Width Overall                 3390mm
Rise Time                       50s
Width between Pillars     2800mm
Power Supply                 3PH/380V



Features:



1.“Double S” Column
Maximizes the strength of the column and surface contact area of the bearings



2.Carriage Body
Fit “Double S” column well. More stable working. 6mm thickness steel made.



3.Arm Holding Structure
"U" type Enhanced One Piece 2 folds. Steel thickness is 14mm



4.Arm Restraints Teeth
•100% fully engaged gears.
•Crescent teeth bolted, not welded
•Special synthetic material made.



5.Powder Coating

American Doupont powder coating finished.







Package:



3900mm*500mm*800mm
780mm*260mm*290mm

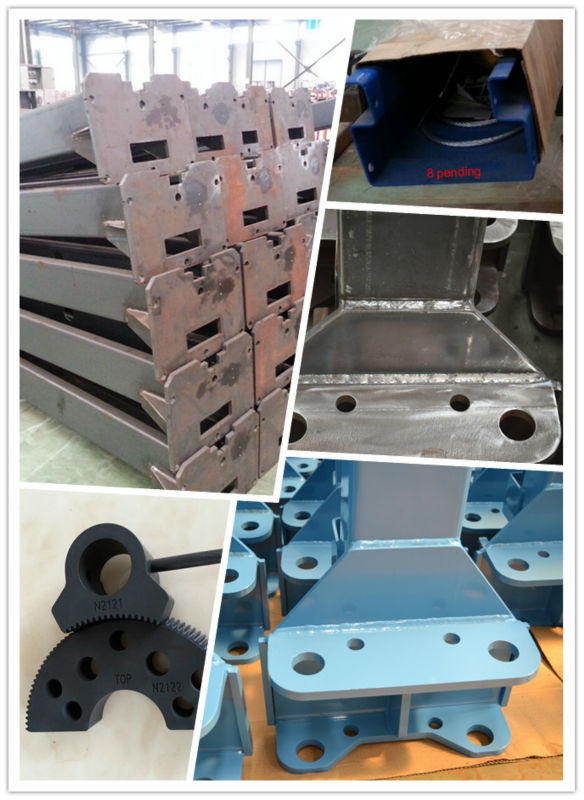

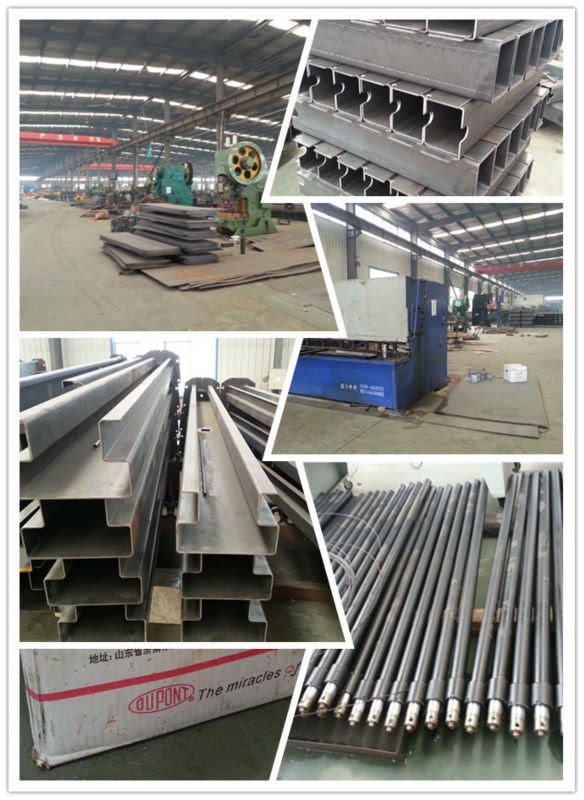

Production we do:




Warranty:



J&F 2 post lifts: five (5) years on structural components and one and a half (1.5) years on electric or air / hydraulic power units and cylinders effective from date of  delivery.



J&F Certifications:
